Data Acquisition, Monitoring, and Controling
Gateway DAQ Application
Easy your edge service
DAQ (data acquisition) system consists of a collection of hardware and software for sampling physical parameters such as voltage, current, temperature, and strain with a sensor or RTUs. The system enables engineers to condition and convert samples into digital data for capture, live monitoring, analysis and process application. The haitai Gateway Plug&Play for sensors and RTUs via RS485, GPIO, CANBus. and fast your application service setting by simple configuration. Haitai DAQ gateway is designed with data logging, edge processing, event management for data acquisition, process monitoring and application contro ling
Key Features
The device is designed for a quick, easy and cost-efficient product of serial port sensors. The device combines plug-and-play sensor hardware with an easy-to-use software. it makes it possible to display and log the sensor signals for multiple sensors connected to the gateway on the same PC.
Relay
12V/24V on/off 3 supply ports controlled by relay from MCU
Ports II
Ports with 5V Supply 1 x USB2.0 Port 2 x ports RS485
Network
Wire/Wireless 1xLAN/WAN 1xLora/ 4G/Lora+4G
I/O Connector
Fix the cable by the screws with the connectors.
Ports I
Ports with 12V Supply and General Port 2 x RS485+ 1x CANBus+1 x GPIO ( each port with 12V supply ports for sensors )
Make your application easily

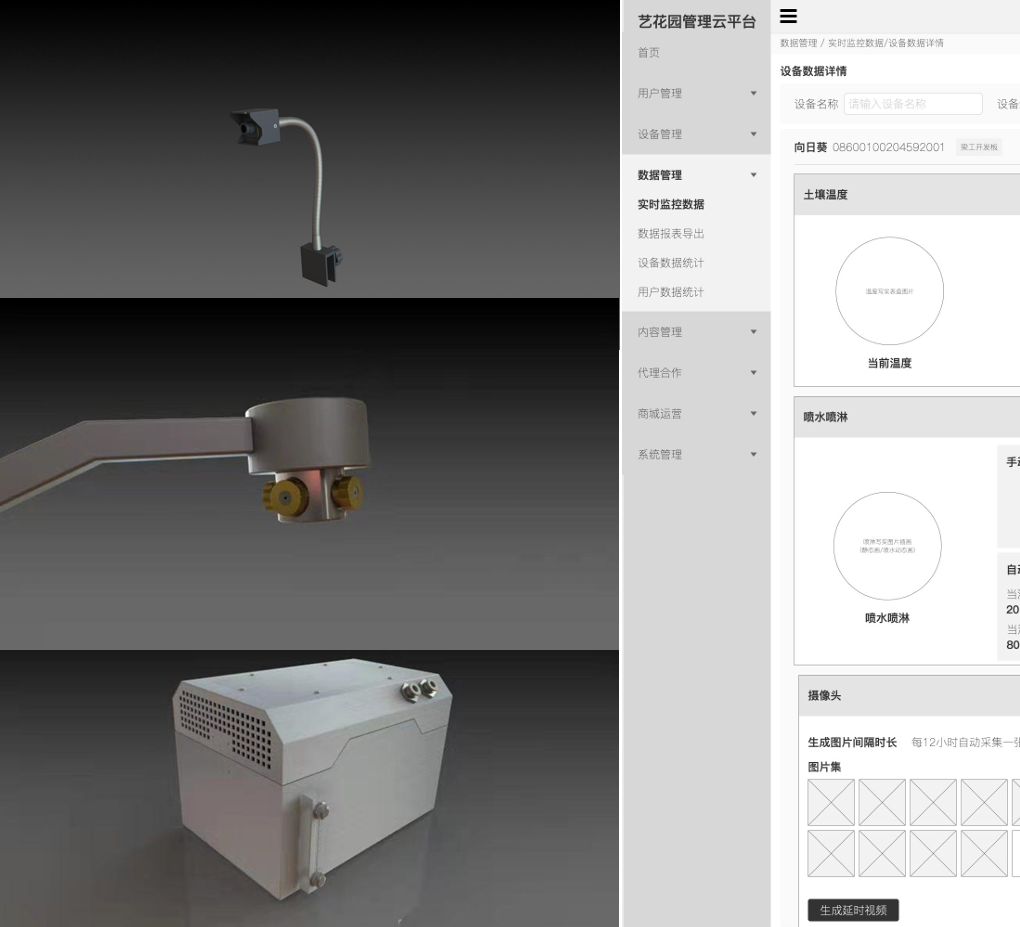

Data acquisition and control, DAQ Edge system is connected and synchronized with control system.
Play&Plug,Easy to Extend,Smart Control

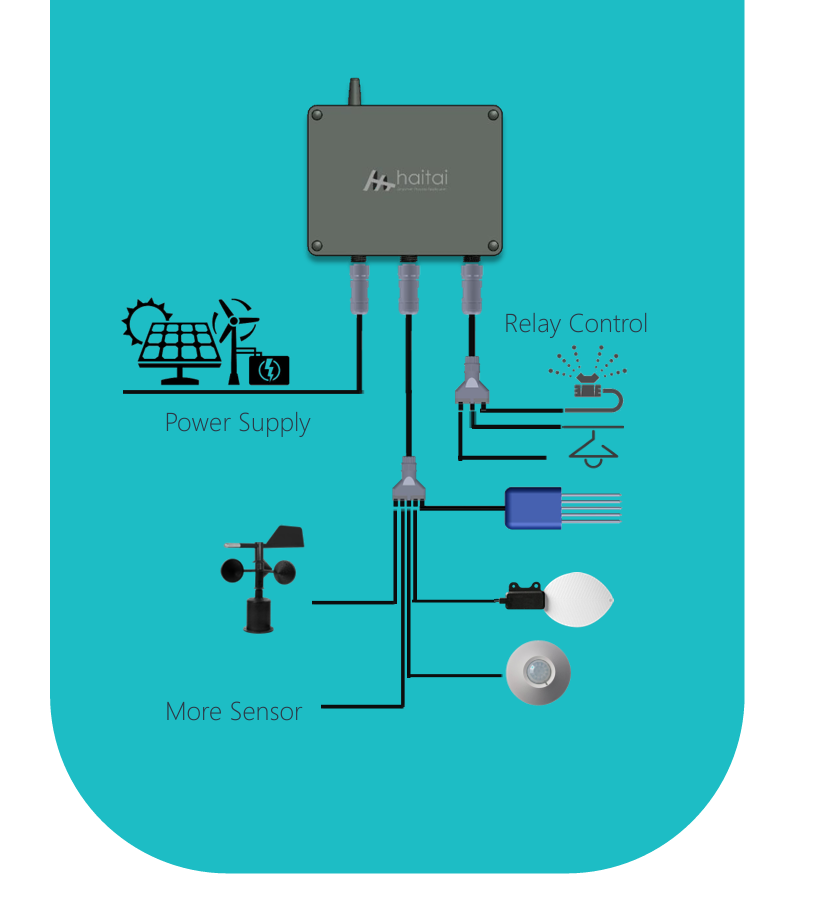

It supports to connect RS485 sensors directly, monitor the soil data by NPK, Soil moisture, soil temperature, EC and PH sensors; the weather and environmental data such as wind direction, wind speed, barometric pressure, temperature, humidity sensors. and other datas based on different sensors. it aggregates data from in and around the application and transforms it into useful information. Also it can control other devices and excute the process as edge unit and updates with data center via RS485, LAN/WAN, Lora, 4G commnunication
